Exploring the Snyk Web UI

Introduction to what you can do in the Snyk Web UI
No matter how you use Snyk, you can use the Snyk Web UI to connect your source code management (SCM) repositories, container registries, and applications. If you haven't already, go to the Snyk Web UI and create an account.
After you connect, you can import your repositories and projects for Snyk to scan, monitor, and fix vulnerabilities in your source code.

Set up the Snyk Web UI

When you log in to an existing account, the Web UI opens to the Dashboard. Initially a wizard can guide you through setup steps:
  1. 1.
    Identifying where the code you want to monitor in Snyk is located.
  2. 2.
    Defining which projects within your code you want Snyk to scan.
  3. 3.
    Connecting Snyk to the relevant projects to scan them.
  4. 4.
    Reviewing the results of your Snyk scan.
If you are signing in to a paid account, you must also select the relevant Organization after you log in to Snyk.
In the following example, the Snyk dashboard for an Enterprise account shows pending tasks, vulnerable projects, and current security and license issues.
Snyk dashboard for an Enterprise account
Snyk dashboard for an Enterprise account

What can I do on the Web UI pages?

Dashboard

On the Dashboard, you can view your pending tasks and vulnerable projects, invite team members, and add new Projects. You can also use the Add Project link to add a new Project.
The Pending tasks section shows the next chores to be handled for the Projects in a Snyk Organization. This information includes:
  • Pull Requests (PRs) that can be raised to fix vulnerabilities in some of the most vulnerable projects.
  • PRs that have already been raised by or through Snyk and are open and awaiting review.
Currently, Snyk tracks and flags PRs in GitHub, GitHub Enterprise, and Bitbucket Cloud only, and only for the top-most vulnerable projects. If you use another SCM, Pending tasks shows only PRs that can be raised, and not PRs that have already been raised.
Pending tasks and Vulnerable Projects listed on the Dashboard
Pending tasks and Vulnerable Projects listed on the Dashboard
You can use the Add project link on the dashboard to add a Project. Select the way you want to add the Project from the dropdown.
Use the links for Projects on the dashboard to explore and manage the metadata, retest, and fix options for the Targetfiles in your Projects. Each link opens a Project details page where you can view the Project Overview, or switch to the History and Settings tabs.
  • For Projects with the Fix vulnerabilities link, use the link to view Project details with an option to Open a Fix PR. Use this option to open a fix PR to implement the upgrades and patches in GitHub that address the issues.
  • For Projects with a View PR link, use the link to open and view the Snyk-generated PR fixes in GitHub.

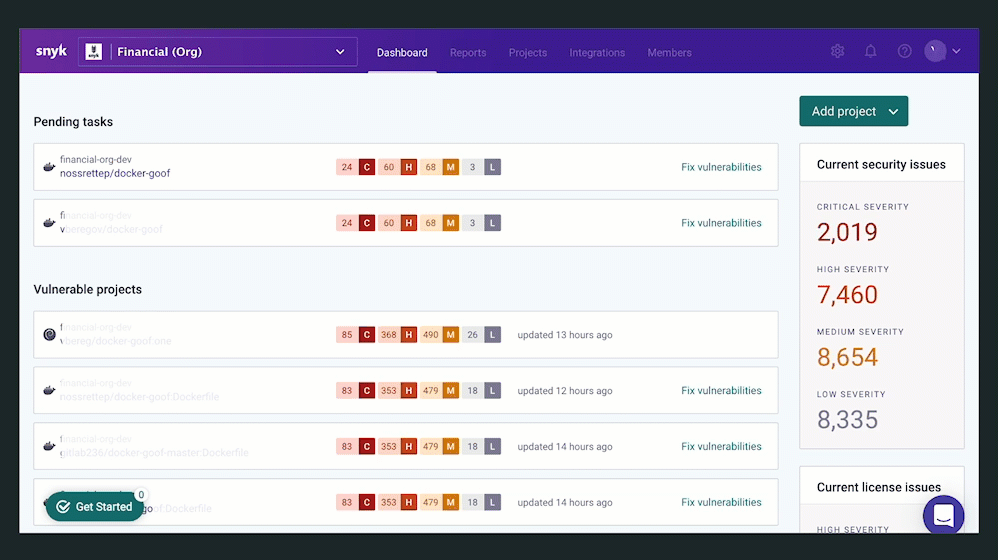

Demo, add project and Project details tabs
Demo, add project and Project details tabs

Reports

You can view reports to gain visibility and insights into the state of all your Projects, vulnerabilities, and license issues.
Feature availability The Reports tab is fully enabled for Enterprise plans.
Demo of viewing reports, filters, and summary filters
Demo of viewing reports, filters, and summary filters

Manage your Projects

Select the Projects link in the navigation on the dashboard to open the Projects listing page where you can:
  • Add a Project. Select the way you want to add the Project from the dropdown.
  • Filter, group, and sort your Projects.
  • View tips and the latest import log for your Projects.
  • Select the link for each Project to view the Project details page with a summary and Issue information.
  • Use the plus icon and add a Target from a custom location when Projects are grouped by Target. This allows for grouping projects in another Target in the list.
  • Use the settings icon on the ungrouped Projects listing or the Settings tab on the Project detail page to configure General and GitHub integration settings for notifications, Project testing, and pull request (PR) frequency. You can also look up the unique Project ID and deactivate or delete a project on the Settings tab.
  • View the Project history on the History tab.
Options on the Projets listing page
Options on the Projets listing page

Manage your Integrations

Select Integrations from the navigation on the dashboard to open the Integrations page where you can do the following:
Integrations page
Integrations page

Manage Organization or Group members

Select Members from the navigation on the dashboard to view and manage users, roles, and how users authenticate in your Snyk Organization or Group.
You must be assigned the required Admin roles and permissions to make changes in the Members tab.

Snyk Organization or Group Settings

Use the
menus to view and manage your Organization (team) or Group (company-wide) settings.
Group and Organization settings
Group and Organization settings
See Managing settings for more details.

View product updates

Select Help in the navigation on the dashboard and then select Product updates to visit snyk.io updates.

View helpful resources

Select Help in the navigation on the dashboard and then select an option to view resources with information about Snyk.

Manage account preferences and settings

Select your name in the navigation on the dashboard and then Account settings to open your account settings page where you can view and configure your user account settings and your notification and sharing preferences.
You have access to the following information and options in the in the Account Settings:
  • View and manage your API token (or the Auth Token for free accounts).
  • View the list of your Authorized Applications.
  • Set your Preferred Organization.
  • Delete your account.
  • Manage your notification preferences for Email Notifications, Issue email alerts, the Weekly report, Usage alerts, Report status, and Marketing & Sales Communications.
  • Share a Snyk referral link with your friends.
Account settings screens
Account settings screens
