Exploring and working with the Snyk Code results on the Web UI

After you imported to Snyk the repositories you want Snyk Code to analyze, you can start exploring and working with the Snyk Code results on the Web UI.

Locating the Snyk Code results

During the import process, Snyk creates a Target folder for each imported repository. In this Target folder, Snyk creates different Snyk Projects for the files of the imported repository, according to the data type of the files. All the files that contain source code that can be analyzed by Snyk Code, are aggregated in the Code analysis Project:
Note: The name of the Target folder includes the name of the imported repository, together with the account name of the integrated SCM, the SCM icon, and the number of Snyk Projects that were created for the repository.
Screenshot with callouts pointing to various UI elements in a Snyk Project listing
Note: Unlike other Snyk products, which create a separate Snyk Project for each imported file, Snyk Code creates one Snyk Project for all the imported files of one repository. This way, all the vulnerabilities that were detected in the repository code are aggregated in one Project, and the Snyk Code results can present the data flow of a vulnerability issue across multiple files.

Filtering Existing Projects

The Projects page on the Web UI includes a Filter pane. This Filter pane allows you to filter your Snyk Projects according to different criteria, and it provides you with information about the number of existing Snyk Projects that match each criterion:
Screenshot of the filtering options for projects grouped by target in Snyk
By default, only active Projects with discovered issues are displayed on the Projects page.
For Snyk Code, you can use the following Filter criteria:
  • SHOW:
    • With issues and Without issues - Projects with or without issues that were discovered by Snyk.
    • Active and Inactive - **** Projects that are either in an Active or Inactive status in Snyk. Inactive Projects are Projects that were deactivated on the Web UI. Note: For more information, see Deactivating and deleting the Snyk Code Project.
  • INTEGRATIONS: the integrated SCMs that store repositories that were imported to Snyk.
Note: The other options in the Filter pane are currently not applicable to Snyk Code.

Viewing the discovered vulnerability issues in a repository

To view all the vulnerability issues that Snyk Code detected in your imported repository:
  • On the Projects page, open the Target folder that contains the Projects of the required repository. Then, click the Code analysis Project:

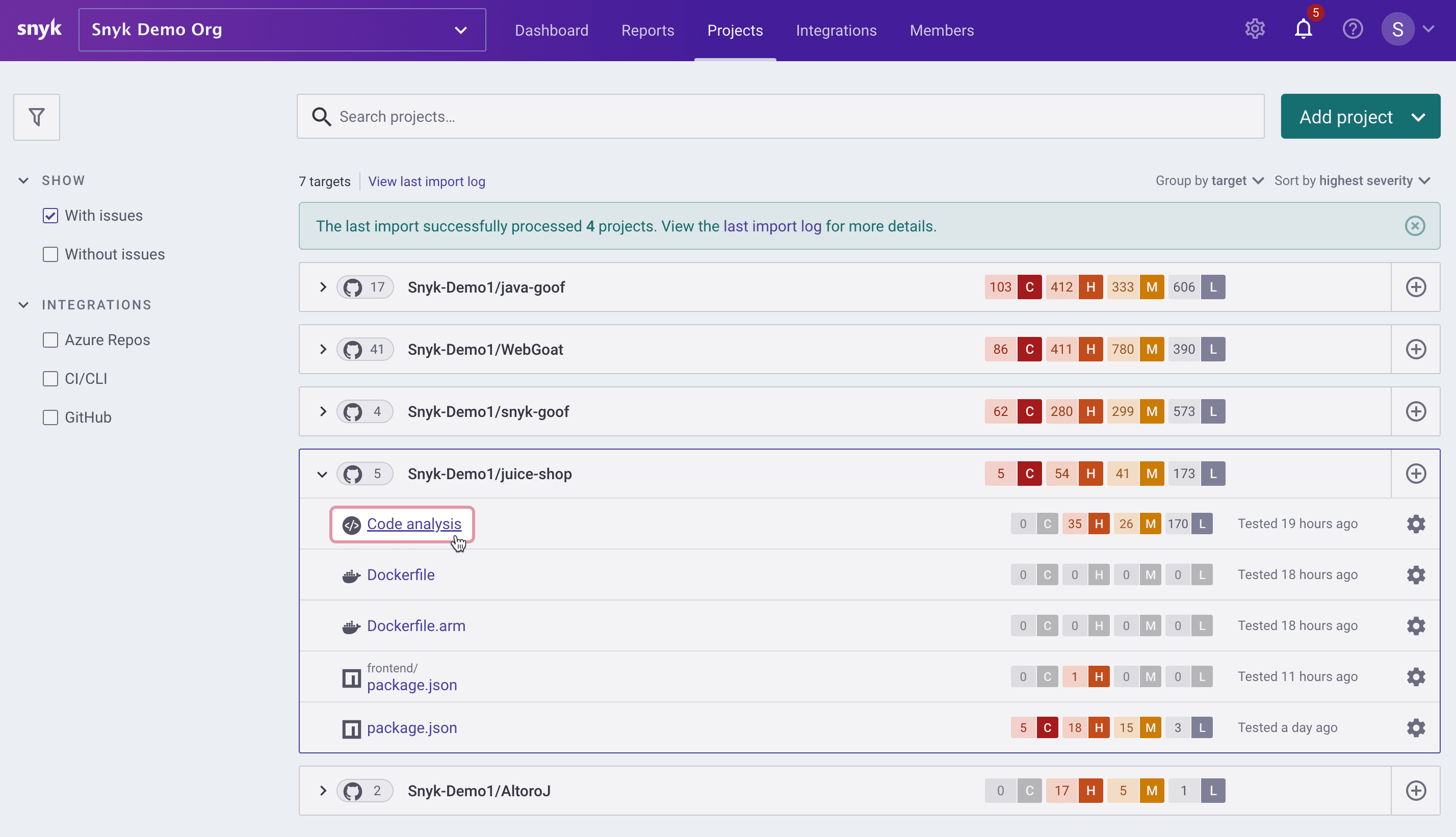

Screenshot of a cursor selecting a Code Analysis project in Snyk
The Code Analysis page appears, displaying the list and details of the vulnerability issues that were discovered in the selected repository. This issue list is organized by the severity level of the discovered issues, by default from the highest to the lowest:
Screenshot of a Code Analysis project in Snyk
