# Ping Identity setup

This page explains how to set up a Ping Identity Application and connect it to Snyk to facilitate SSO.

Before configuring your Ping Identity Application to use SSO with Snyk, obtain an entity ID and a reply URL (Assertion Consumer Service URL) from Snyk. Then follow these steps:

1. In the left menu, select your **Group**, then **Settings**.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-4eb82f21ea1b1bc18e8996a16be4b4a154021e18%2FScreenshot%202023-09-05%20at%2010.54.23%20AM.png?alt=media" alt="" width="375"><figcaption></figcaption></figure>
2. Select **SSO** and copy the values under **Entity ID** and **ACS URL** or leave the browser tab open for easy access.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-8b7939bb9485e4396f209b637449862baaa4ff04%2F2.png?alt=media" alt="Group Settings: SSO"><figcaption><p>Group Settings: SSO</p></figcaption></figure>
3. Navigate to Ping Identity and select **Applications** in the **Connections** menu. Click on the plus sign to create a new application.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-41e2be20596f435cdbfea408b979b85f795fad08%2F1.png?alt=media" alt="Create a new application"><figcaption><p>Create a new Application</p></figcaption></figure>
4. Name your application appropriately, select **SAML Application**, and click **Configure.**

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-2f027b4e692e37dd56492a950c0a8f48d883e95e%2F2%20(4).png?alt=media" alt="Configure as SAML Application" width="563"><figcaption><p>Configure as SAML Application</p></figcaption></figure>
5. Enter the details you copied from Snyk, the **ACS URL** and **Entity ID,** and select **Save**.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-caa3a1637bd73481fd4f83b897d44d3cb092c323%2F3.png?alt=media" alt="Add Snyk configuration details" width="563"><figcaption><p>Add Snyk configuration details</p></figcaption></figure>
6. Select **Configuration** and download the signing certificate in PEM format.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-968374853d4c14b7c0355282302bed213bc1d057%2F4.png?alt=media" alt="Download signing certificate"><figcaption><p>Download signing certificate</p></figcaption></figure>
7. Scroll further down and copy the **Single Signon Service** details.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-07cfaf73a17295f555bec854b848e2160cbd3233%2F5.png?alt=media" alt="Copy the Single Signon Service details"><figcaption><p>Copy the Single Signon Service details</p></figcaption></figure>
8. Return to the the Snyk portal and paste the single sign-in URL copied at step 2 into the **Sign in URL** field. \\

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-a495799ca4b0cf13fdf80f49f21e561529623c74%2Fsingle-sign-on-URL-field.png?alt=media" alt="Paste Sign in URL"><figcaption><p>Paste Sign in URL</p></figcaption></figure>
9. Open the downloaded certificate in your preferred text editor, copy the text and paste it into the Snyk **X509 signing certificate** field, and add the relevant domains that are supported by this SSO connection.\
   Finally, verify if an IdP-initiated workflow should be enabled and then click **Create Auth0 connection** if you are creating a completely new connection or **Save changes** if you are editing an existing connection.

   <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-79db1882760816bdb0a6c5b44af7a5262ce73555%2FScreenshot%202023-09-05%20at%2011.01.53%20AM.png?alt=media" alt="Enter the Ping Identity details"><figcaption><p>Enter the Ping Identity details</p></figcaption></figure>

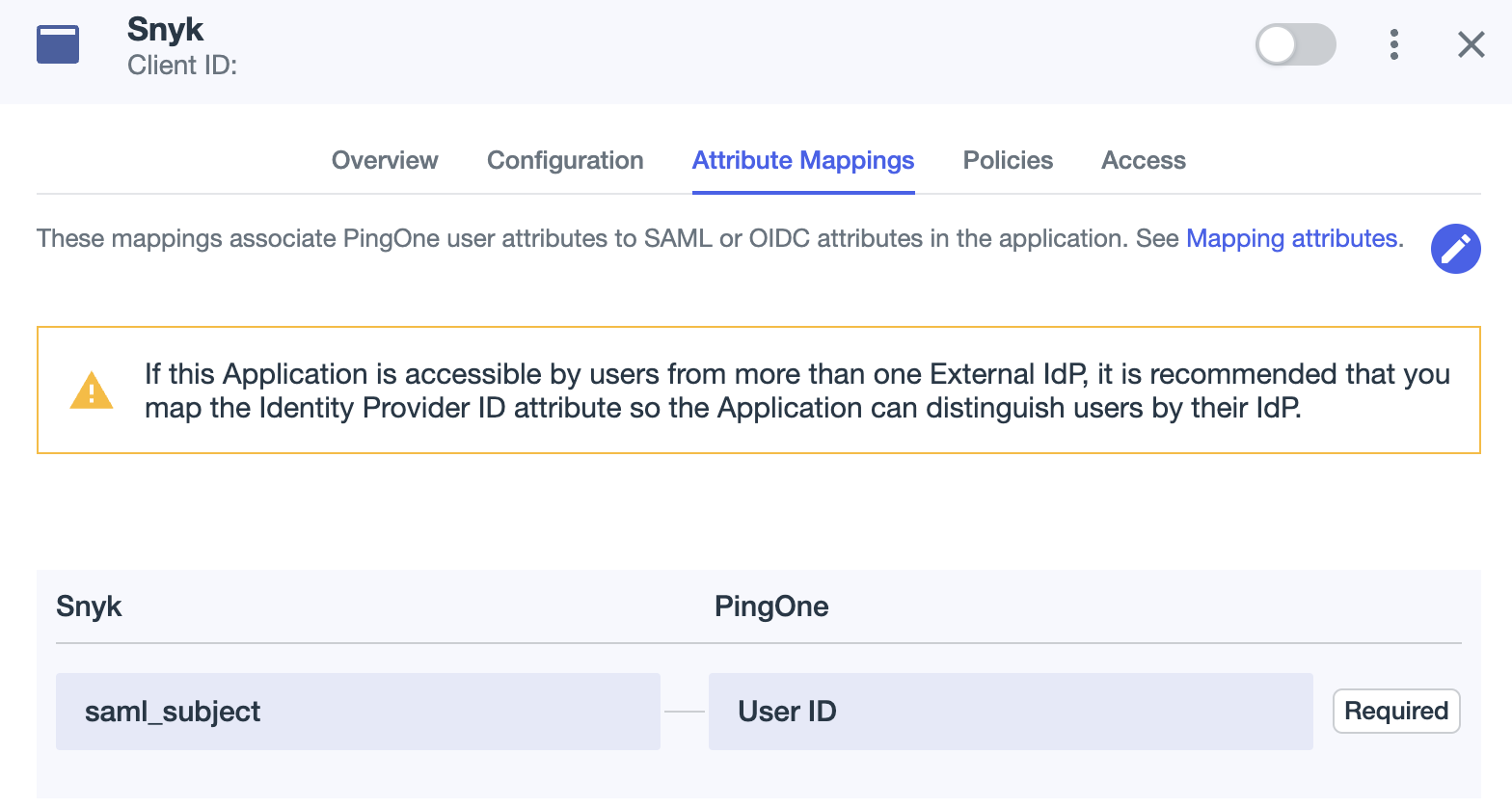

10. In Ping Identity, select **Attribute mappings** and click the pencil to edit.

    <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-be84ee0fb4db350b687ddfc7d56c77e527fb08cc%2F6.png?alt=media" alt="Edit attribue mappings"><figcaption><p>Edit attribue mappings</p></figcaption></figure>
11. Click the cog icon and add the following attributes:

    **email**: Email Address\
    **username**: Username\
    **name**: the expression `user.name.given + ' ' + user.name.famil`y; click the cog icon to enter an advanced description.

    <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-81407636846936cf9b6e070ea7e0ed96ae7efa18%2F7%20(2).png?alt=media" alt="Add attribute mappings"><figcaption><p>Add attribute mappings</p></figcaption></figure>

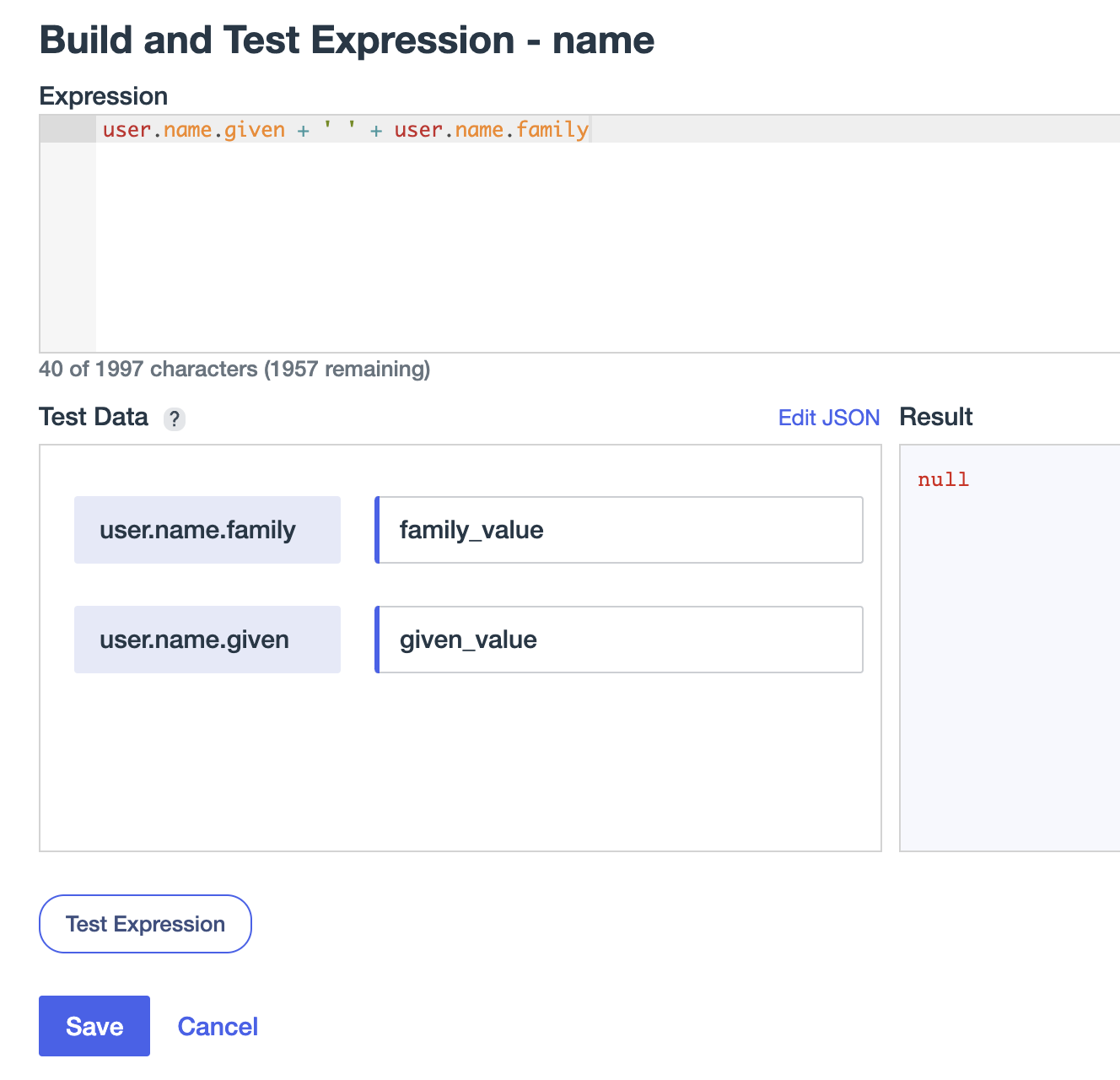

    <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-f24a8954770b6744f88388771b66eea8bb8c991e%2F8.png?alt=media" alt="Add an advanced expression for the name attribute"><figcaption><p>Add an advanced expression for the name attribute</p></figcaption></figure>
12. In the Snyk portal, decide how new users should be treated when signing in and choose the option you would like to use: **Group member**, **Org collaborator**, or **Org admin**.
13. Change the profile attributes to the attribute names you entered in Ping Identity then click **Save changes.**\\

    <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-7a6c3c946469e05840e56ead32dd7bf2dcde275d%2FScreenshot%202023-09-05%20at%2011.07.37%20AM.png?alt=media" alt="Step 3 Snyk SSO settings"><figcaption><p>Step 3 Snyk SSO settings</p></figcaption></figure>
14. Verify you can log in, either with the direct URL at the top of **Step 3 Snyk SSO settings** (not shown in the image) or by going to the [generic SSO login](https://app.snyk.io/login/sso).
15. As a final step, enable the application and assign it to users.

    <figure><img src="https://2533899886-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MdwVZ6HOZriajCf5nXH%2Fuploads%2Fgit-blob-0cdedccc16649610862a9f1dc2dbf0670818e0b5%2F10.png?alt=media" alt="Enable and assign the application to users"><figcaption><p>Enable and assign the application to users</p></figcaption></figure>
