CircleCI integration using a Snyk Orb

Snyk integrates with CircleCI using a Snyk Orb, seamlessly scanning your application dependencies and Docker images for open-source security vulnerabilities as part of the CI/CD workflow.

CircleCI enables users to easily create CI/CD workflows using a group of ready-to-use commands (Orbs) that can be added to your configuration file.

With the Snyk Orb, you can quickly add Snyk scanning to your CI/CD to test and monitor for open-source vulnerabilities based on your configurations. Results are then displayed on the CircleCI output view and can also be monitored on snyk.io.

Implement the Snyk Orb

Refer to the following information about the Snyk Orb to get started with CircleCI, from implementation to a green build with Snyk.

• Snyk Circle CI README - includes all the information that you need to set up your CI/CD with Snyk, including a list of parameters and samples

• Adding application and image scans to your CI/CD pipeline (Circle CI tutotial) - discusses how to set up a secure pipeline with the Snyk Orb

How CircleCI integration works

After you add a Project to CircleCI and add the Snyk Orb to the configuration file, every time a build runs, the Snyk Orb is also used and performs the following actions:

Scan

1. Scans app dependencies or container images for vulnerabilities or open-source license issues, and lists the vulnerabilities and issues.

2. If Snyk finds vulnerabilities, it does one of the following, based on your configuration:

   • Fails the build.

   • Lets the build complete.

Monitor

Optionally, if the build completes successfully and MONITOR is set to True in the Snyk step, then Snyk saves a snapshot of the Project dependencies from the Snyk Web UI. From the Snyk Web UI you can view the dependency tree displaying all of the issues, and you can receive alerts for new issues found in the existing app version.

Prerequisites for implementing CircleCI integration

1. Create a Snyk account and retrieve the Snyk API token from your Account settings.

2. Import the relevant repository into CircleCI.

3. Go to Settings -> Security -> Orb security settings and ensure you allow opt-in to third party Orbs.

4. Ensure your configuration (config.yml) file follows version 2.1.

5. Add the required environment variables to CircleCI, including the Snyk PAT or API token as SNYK_TOKEN.

Getting Snyk Orb details from the CircleCI registry

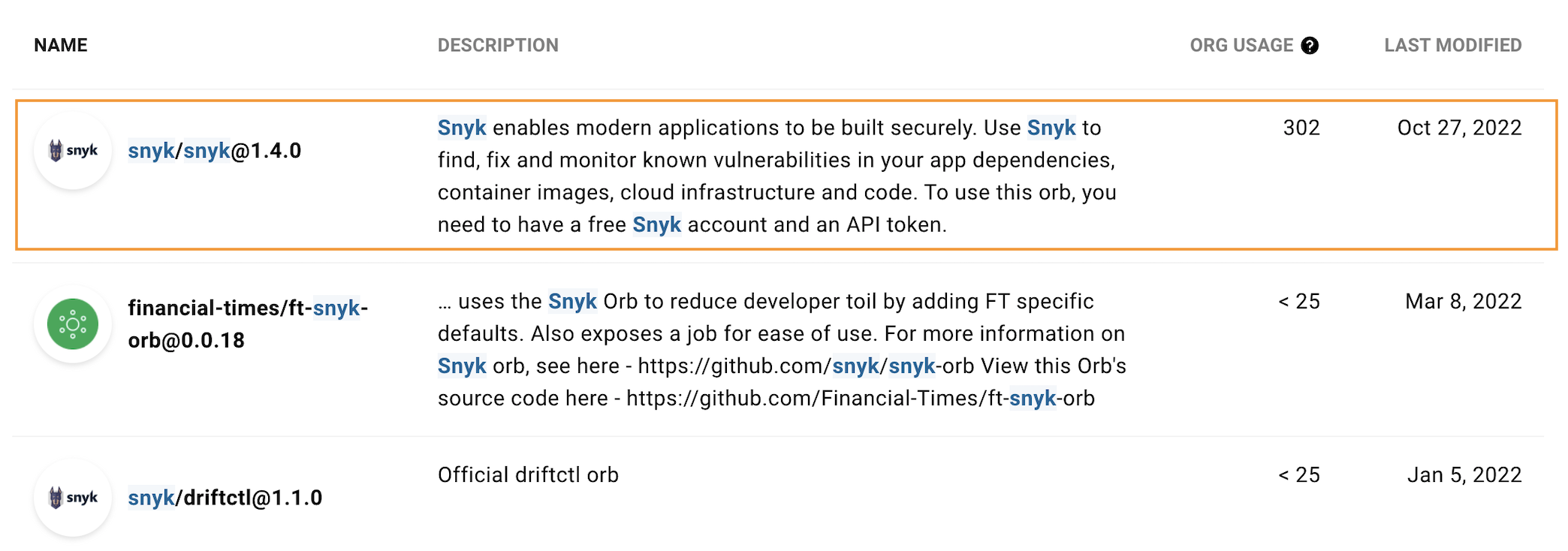

On the Orbs registry, CircleCI displays a list of available Orbs customized for you directly, similar to the list in the image that follows.

Snyk Orb for CircleCI

In this list, find and click the relevant Snyk line to view the Snyk Orb information with examples, parameters, and values:

Be sure to use the latest version of the Snyk orb from the list.

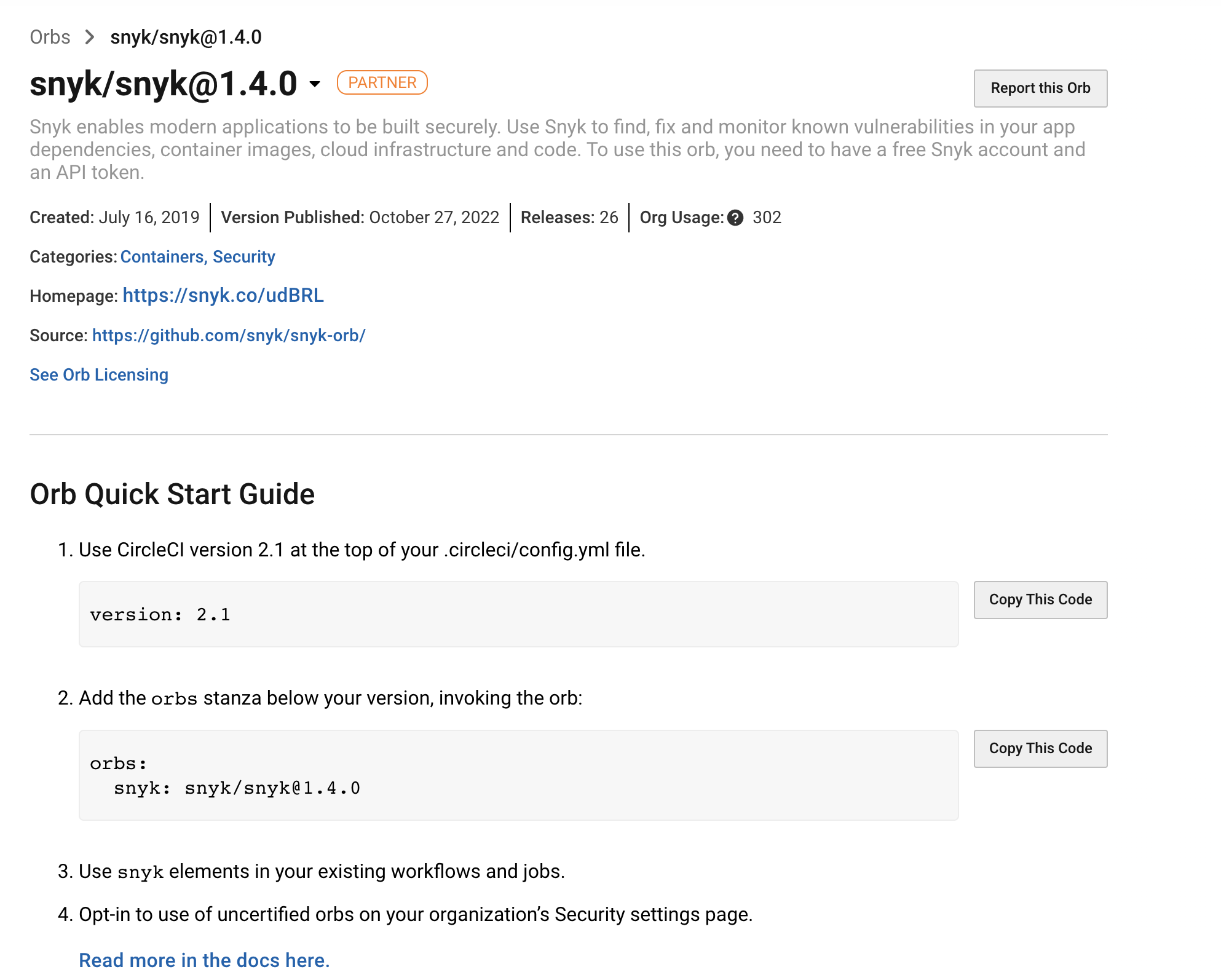

Snyk Orb information
