Snyk Security Scan task parameters and values

The following describes the Snyk task configuration fields on the configuration panel in Azure Pipelines, the associated parameters for Azure Pipelines integration, and the valid values.

Field: Snyk API token service

Parameter: serviceConnectionEndpoint Required: Yes Default: none Type: String / Azure Service Connection Endpoint of type SnykAuth / Snyk Authentication

Description: The Azure DevOps service connection endpoint where your Snyk API token is defined. Your admin defines this within your Azure DevOps project settings, assigning it using a unique string in order to differentiate between different connections.

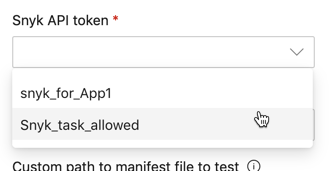

The configuration panel displays all available Snyk service connections from a dropdown list like the following:

Snyk service connections

If multiple Snyk service connections are available from the dropdown list, ask your administrator which to use for the pipeline you are working with.

Field: What do you want to test

Parameter: testType Required: Yes Default: application Type: string: app or container or code

Description: Determines the type of testing to perform, which also selects the dynamic fields to display as described on the rest of this page.

• Specifying app will perform analysis of your application's open-source dependencies (SCA)

• Specifying container will analyze container packages and detected application open-source packages (SCA)

• Specifying code will perform static analysis (SAST) on source code.

Field: Container Image Name

Parameter: dockerImageName Required: Yes Default: none Type: String

Description: The name of the container image to test. This dynamic field appears when What do you want to test is set to Container Image. Set to Yes if you are performing a container image test.

Field: Path to Dockerfile

Parameter: dockerfilePath Required: Yes Default: none Type: string

Description: The path to the Dockerfile corresponding to the dockerImageName. This dynamic field appears when What do you want to test is set to Container Image. Set to Yes if you are performing a container image test.

Field: Custom path to manifest file to test

Parameter: targetFile Required: No Default: none Type: string

Description: Applicable to application-type tests only. The path to the manifest file to be used by Snyk. Should be provided only if non-standard. This dynamic field appears when What do you want to test is set to Application.

Field: Testing severity threshold

Parameter: severityThreshold Required: No Default: "low" Type: string: "low" or "medium" or "high" or "critical"

Description: The severity threshold to use when testing. By default, issues of all severity types are found. If not configured, the default severity is set to low.

Field: Code testing severity threshold

Parameter: codeSeverityThreshold Required: No Default: "low" Type: string: "low" or "medium" or "high"

Description: The Code severity threshold to use when testing. By default, issues of all severity types are found. If not configured, the default severity is set to low.

Field: When to run Snyk Monitor

Parameter: monitorWhen Required: No Default: "always" Type: string: string: always, onIssuesFound, or never

Description: When to run snyk monitor to capture the dependency tree of the application or container image and monitor it within Snyk.

Field: Fail build if Snyk finds issues

Parameter: failOnIssues Required: Yes Default: true Type: Boolean

Description: Specifies whether pipeline jobs should be failed or continued based on issues found by Snyk.

Field: Project name in Snyk

Parameter: projectName Required: No Default: none Type: string

Description: A custom name for the Snyk Project to be created on snyk.io.

Field: Organization ID in Snyk

Parameter: organization Required: No Default: none Type: string

Description: ID of the Snyk Organization under which this Project should be tested and monitored.

Field: Test (Working) Directory

Parameter: testDirectory Required: No Default: none Type: string

Description: Alternate working directory. For example, if you want to test a manifest file in a directory other than the root of your repository, you would put in a relative path to that directory.

Field: Additional command-line args for Snyk CLI (advanced)

Parameter: additionalArguments Required: No Default: none Type: string

Description: Additional Snyk CLI arguments to be passed in. See the CLI commands and options summary for details. Add --all-projects as good practice (for example, for .NET), if no Project has been found.

Field: Trust unknown Certificate Authorities (advanced)

Parameter: ignoreUnknownCA Required: No Default: false Type: boolean

Description: Use to ignore unknown or self-signed certificates during certificate validation, so self-signed certificates are automatically trusted.
